| M3,5x0,35 |
|
|
| |
33823012D
Open bushing mount Pi-filter, 2x1nF, 250Vdc, 5Amp
7mm long, M3,5x0,5mm thread. Ø0,63mm Au plated connector pin.
|
|
 |

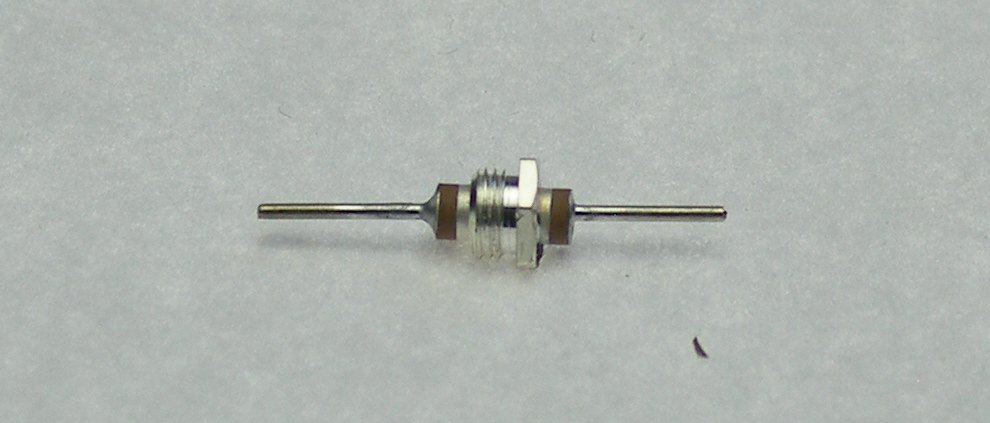

33823010D
Open bushing mount feed through capacitor, 1nF, 250Vdc, 5Amp
7mm long, M3,5x0,5mm thread. Ø0,6mm tinned copper wire.
|
|
 |

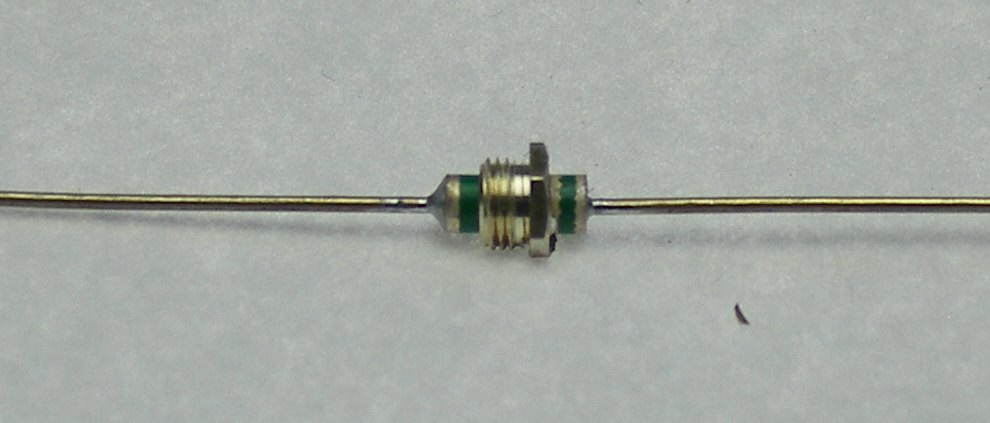

33823003D
Open bushing mount Pi-filter, 2x1nF, 250Vdc, 5Amp
7mm long, M3,5x0,5mm thread. Ø0,6mm tinned copper wire.
|
|
| M5x0,5 |
|
|
 |

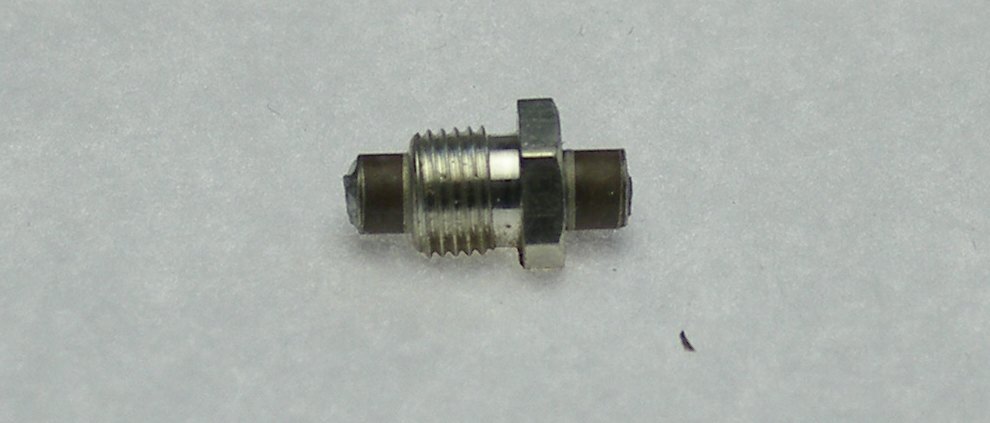

33813004D
Open bushing mount feed through capacitor, 1nF, 220Vdc,
11mm long, M5x0,5mm thread. with internal rivet..
|
|
 |
31213003D
Open bushing mount feed through capacitor, 50pF, 250Vdc, 5Amp,
12mm long, M5x0,5mm thread. Ø0,6mm tinned copper wire.
|
|
|
31213001D
Open bushing feed mount through capacitor, 100pF, 250Vdc, 5Amp,
12mm long, M5x0,5mm thread. Ø0,6mm tinned copper wire.
|
|
|

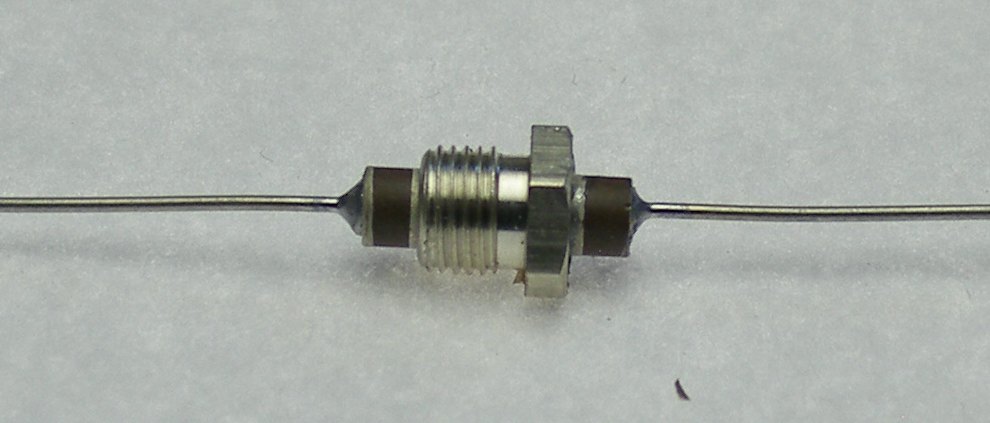

33823002D
Open bushing mount Pi-filter, 2x1,5nF, 250Vdc, 5Amp,
12mm long, M5x0,5mm thread. Ø0,6mm tinned copper wire.
|
|
 |

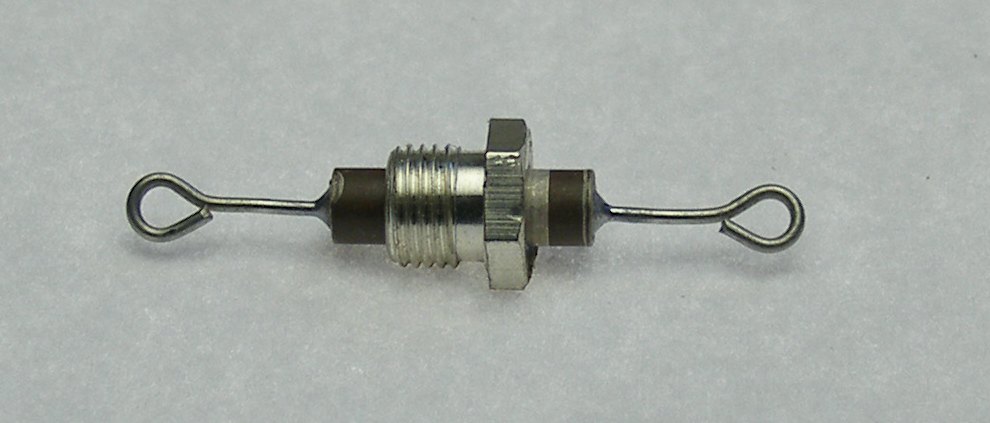

33823011D
Open bushing mount Pi-filter, 2x1,5nF, 250Vdc, 10Amp,
12mm long, M5x0,5mm thread. Ø0,8mm tinned copper wire with eyelets.
|
|
| M6x0,5 |
|
|
 |
32823001D
Open bushing mount Pi-filter, 2x200pF, 350Vdc, 10Amp, 1500Vdc test for EX application.
12mm long, M6x0,5mm thread. Ø0,8mm tinned copper wire.
|
|
|
33824001S
Open bushing mount Pi-filter, 2x450pF, 350Vdc, 10Amp, 1500Vdc test for EX application.
12mm long, M6x0,5mm thread. Ø0,8mm tinned copper wire.
|
|
|

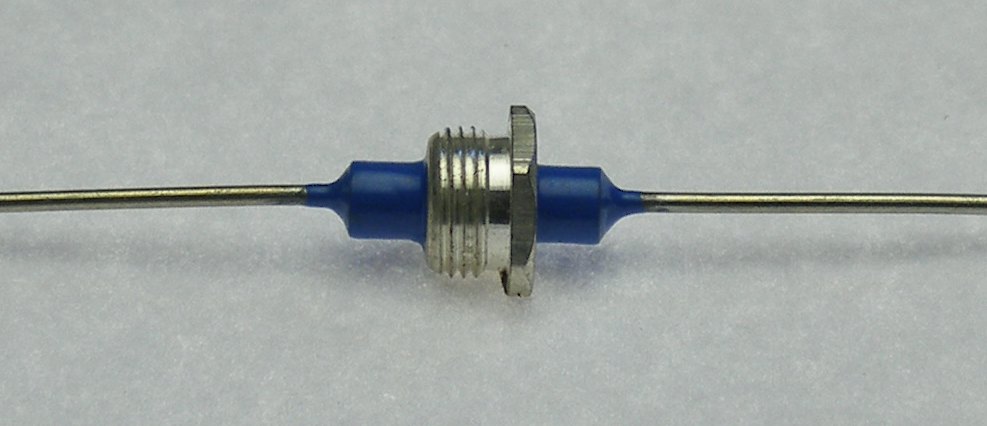

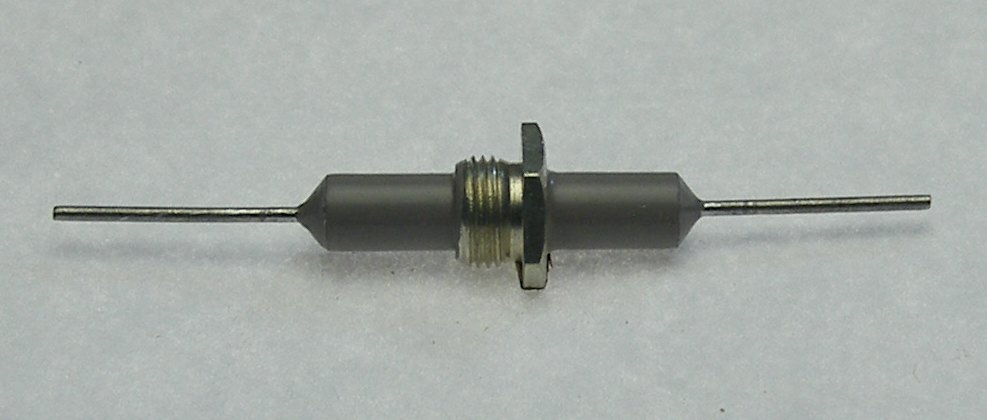

33823001D
Open bushing mount Pi-filter, 2x800pF, 350Vdc, 10Amp, 1500Vdc test for EX application.
12mm long, M6x0,5mm thread. Ø0,8mm tinned copper wire.
|
|
 |
33823001S
Open bushing mount Pi-filter, 2x2,5nF, 500Vdc, 10Amp, 2000Vac test for EX application.
12mm long, M6x0,5mm thread. Ø0,8mm tinned copper wire.
|
|
| 2BA |
|
|
| |
32813002S
Open bushing mount Feed through capacitor, 1,0nF, 500Vdc, 10Amp.
10mm long, 2BA thread. Ø0,8mm tinned copper wire.
|
|
