All Filters

All our feed through capacitors and Pi-filters.

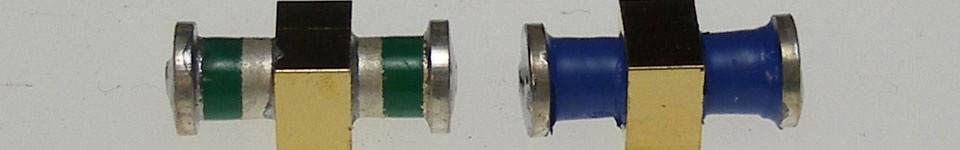

SMD filters

	33825005D SMD Pi-filter 2x1nF, 100Vdc, 5Amp, 250Vdc test. 6,0mm long, 2,1mm square

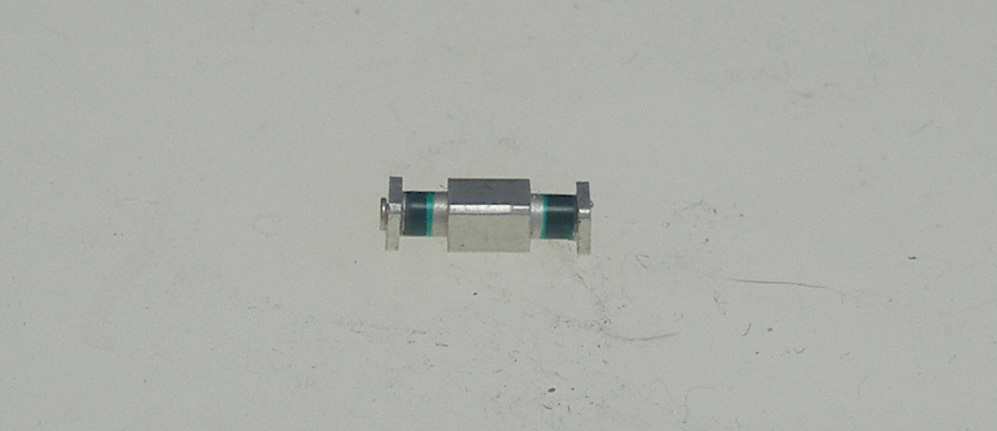

	33825031D/33D/35D/37D/39D SMD Pi-filter 2x100pF up to 2x10.000pF, 5Amp, 250Vdc test. 8mm long, 2,2mm square.
	33825041D/43D/45D/47D/49D SMD Pi-filter 2x100pF up to 2x10.000pF, 10Amp, 250Vdc test 8mm long, 3,0mm square.
	33825051D/52D/53D/55D/57D/59D SMD Pi-filter 2x60pF up to 2x6.000pF, 10Amp, 750Vdc test 12mm long, 4,0mm square.
	33825061D/62D/63D/65D/67D/69D SMD Pi-filter 2x60pF up to 2x6.000pF, 10Amp, 1500Vdc test for EX application. 12mm long, 4,0mm square.
	33825071D/72D/73D/75D/77D/79D SMD Pi-filter 2x60pF up to 2x6.000pF, 25Amp, 750Vdc test. 14mm long, 6,0mm square.
	33825081D/82D/83D/85D/87D/89D SMD Pi-filter 2x60pF up to 2x6.000pF, 25Amp, 1500Vdc test for EX application. 14mm long, 6,0mm square.
	33825009D SMD Pi-filter 2x2nF, 250Vdc, 10Amp, 1500Vdc test for EX application. 12mm long, 4,0mm square.

Soldermount filters

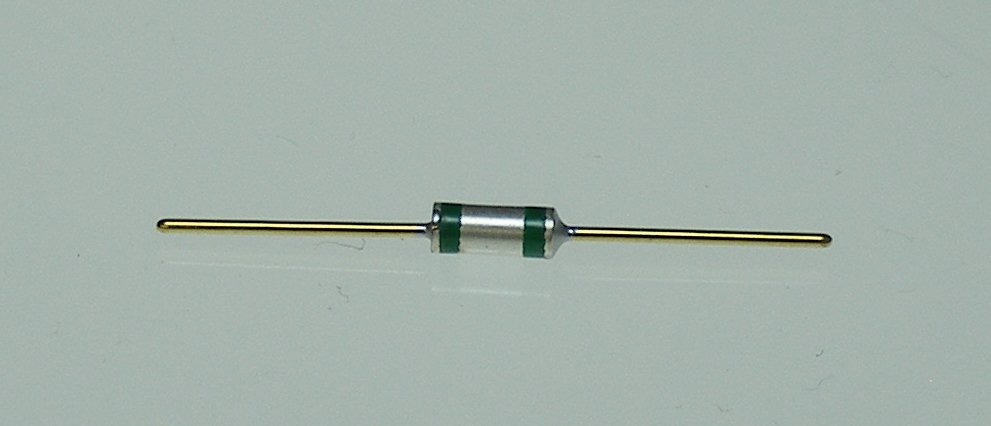

	33821003D Solder in Pi-filter, 2x1nF, 100Vdc, 5Amp 7mm long, 2,1mm dia. Ø0,63x25,4mm Au plated connectorpin.
	33821004S Solder in Pi-filter, 2x1nF, 100Vdc, 5Amp 7mm long, 2,1mm dia. Ø0,63x28,7mm Au plated connectorpin.

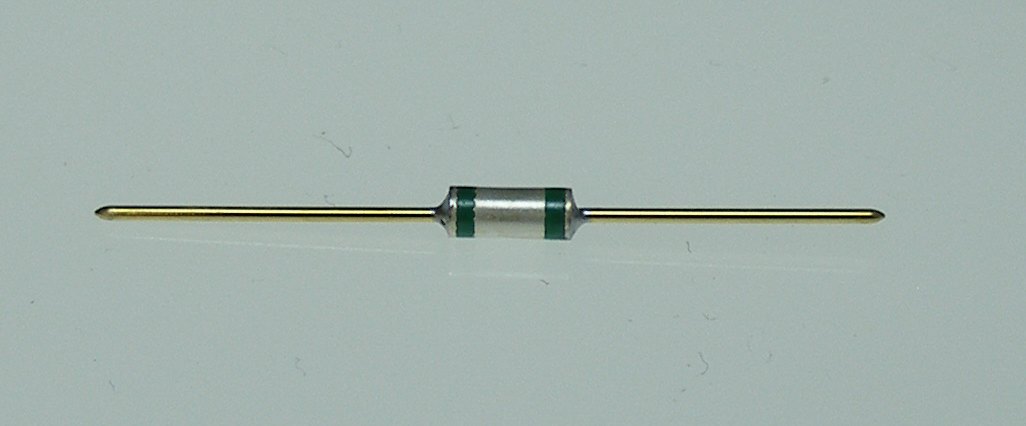

	33811002D Solder in feed through capacitor, 2nF, 100Vdc, 5Amp 7mm long, 2,1mm dia, Ø0,63x30,5mm Au plated connectorpin.

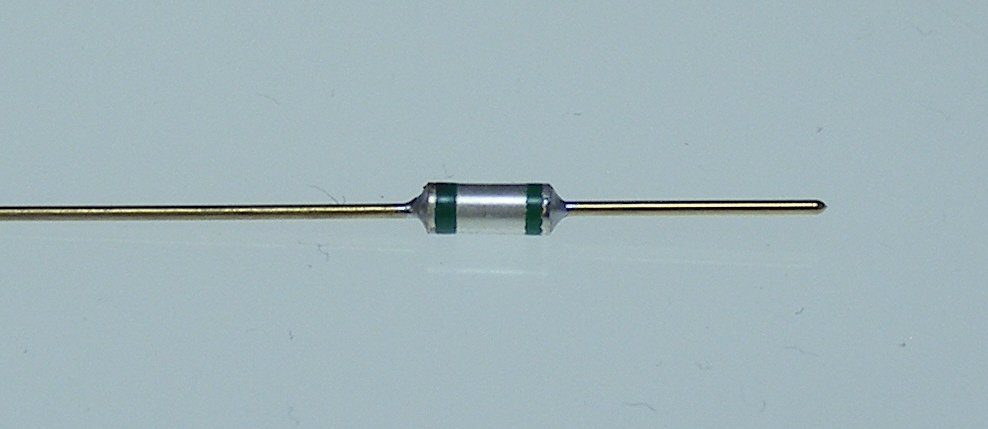

	33811001D Solder in feed through capacitor, 1,2nF, 100Vdc, 5Amp 7mm long, 2,1mm dia, Ø0,63x44,8mm Au plated connectorpin.

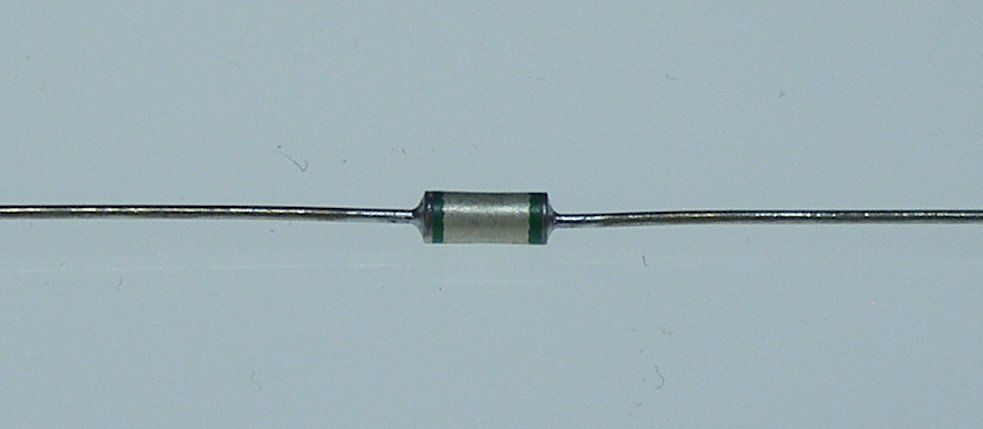

	33821002D Solder in Pi-filter, 2x1nF, 100Vdc, 5Amp 7mm long, 2,1mm dia. Ø0,6mm tinned copperwire

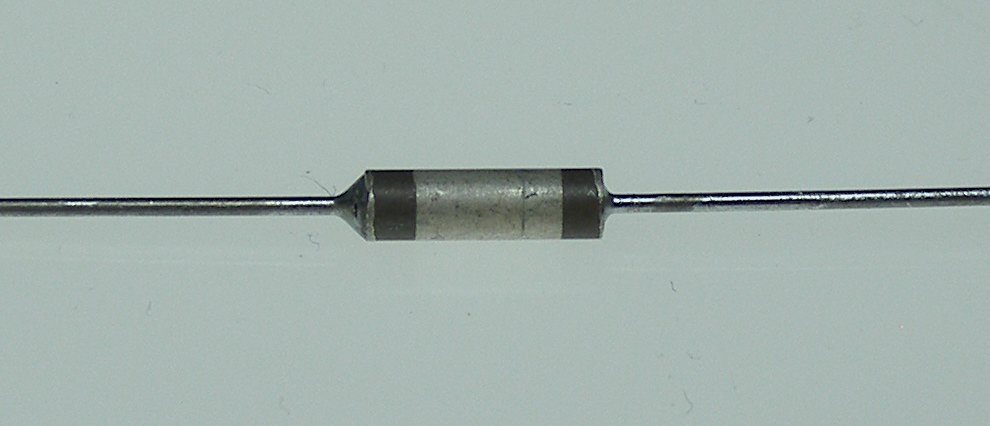

	33821003S Solder in Pi-filter, 2x1,5nF, 250Vdc, 5Amp 12mm long, 3,0mm dia. Ø0,6mm tinned copper wire
	33821001D Solder in Pi-filter, 2x1,5nF, 250Vdc, 5Amp 12mm long, 3,0mm dia. Ø0,6mm tinned copper wire
	31212005D Solder in feed through, 0pF, 300Vdc, 5Amp 2,8mm long, 3,3mm dia. Ø0,76mm Au plated connectorpin.
	32812100D/101D/102D/103D/104D/105D/106D/107D/108D/109D/110D/111D/112D Hermetically sealed Feed through, 0pF up to 50.000pF, 100/500Vdc, 7Amp 2,8mm long, 3,3mm dia. Ø0,76mm Au plated connectorpin.

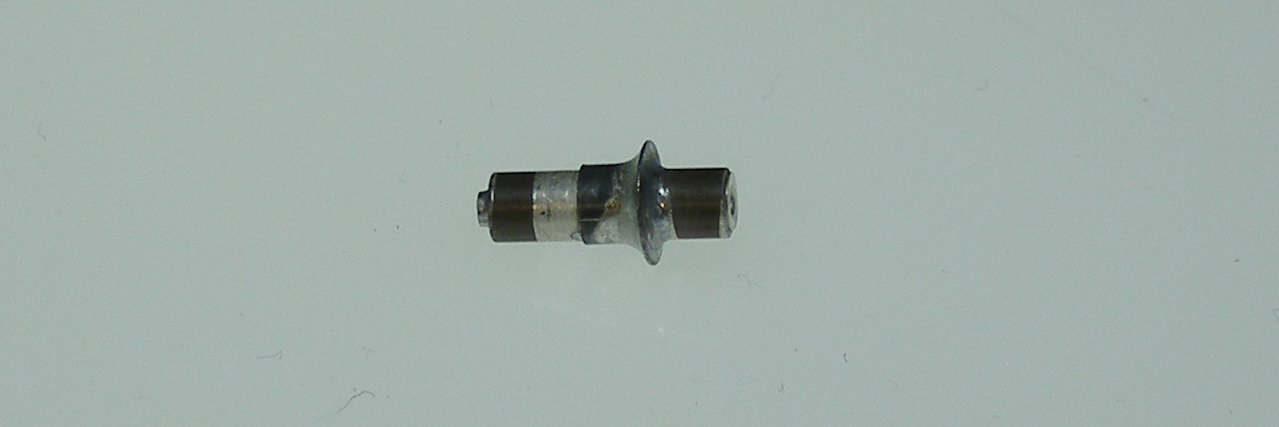

	33822012D Solder in Feedthrough capacitor, 1750pF, 250Vdc, 5Amp 8mm long, 3,4mm dia, for mounting with a Ø0,8mm wire.

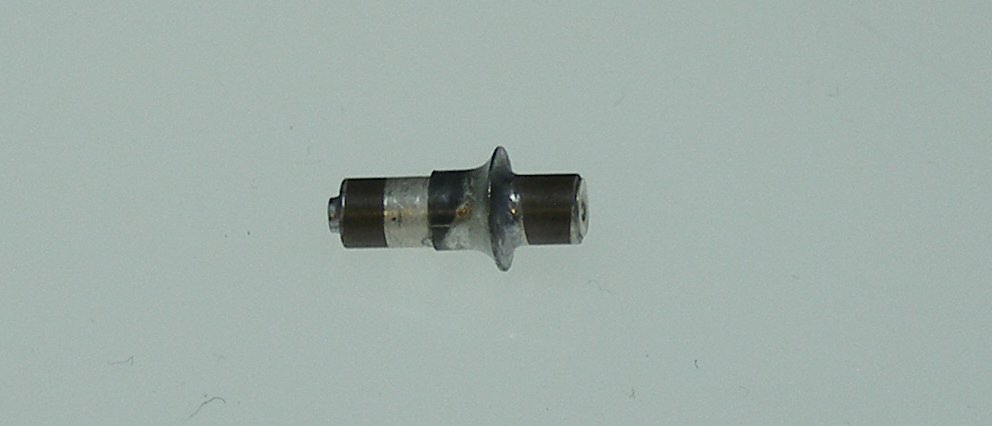

	32812001S Solder in Feed through capacitor, 470pF, 250Vdc, 5Amp 11m long, 3,4m dia. for mounting with a Ø0,8mm wire.
	31212001S Solder in Feed through capacitor, 10pF, 300Vdc, 15Amp 7mm long, 3,4mm dia. Ø1,4mm tinned copper wire.

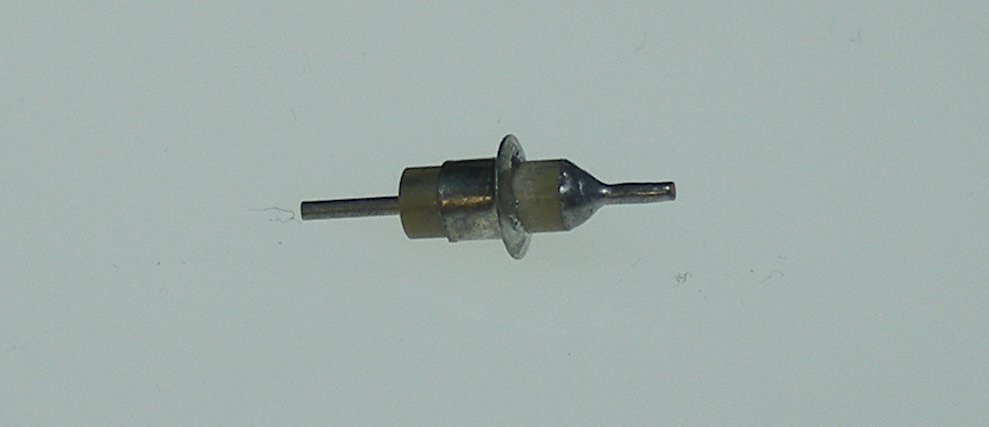

	32812002S Solder in Feed through capacitor, 200pF, 300Vdc, 10Amp 7mm long, 3,4mm dia. Ø0,8mm tinned copper wire.
	32812003S Solder in Feed through capacitor, 1nF, 300Vdc, 10Amp 7mm long, 3,4mm dia. Ø0,8mm tinned copper wire.
	33822005D Solder in Feed through capacitor, 3nF, 120Vdc, 15Amp 8,5mm long, 2,7mm dia, Ø1,0mm tinned copper wire.

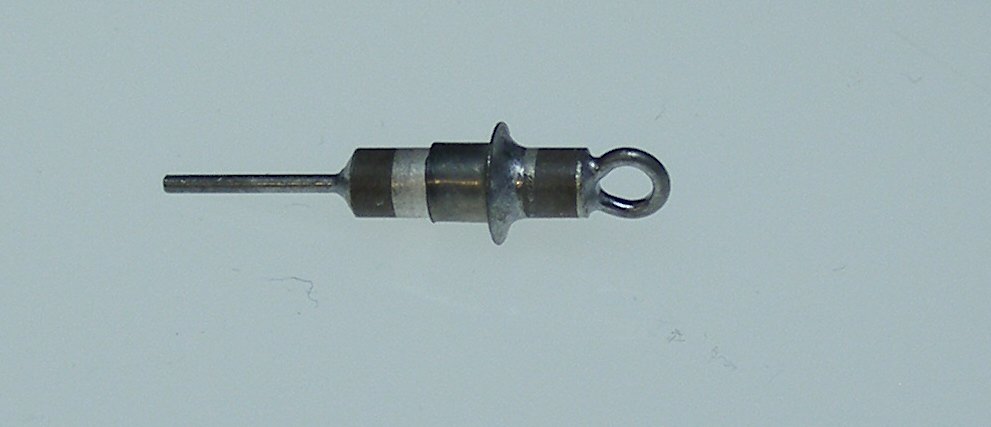

	33822001S Solder in Pi-filter, 2x1,5nF, 250Vdc, 10Amp 12mm long, 3,8mm dia. Ø0,8mm tinned copper wire with eyelet.

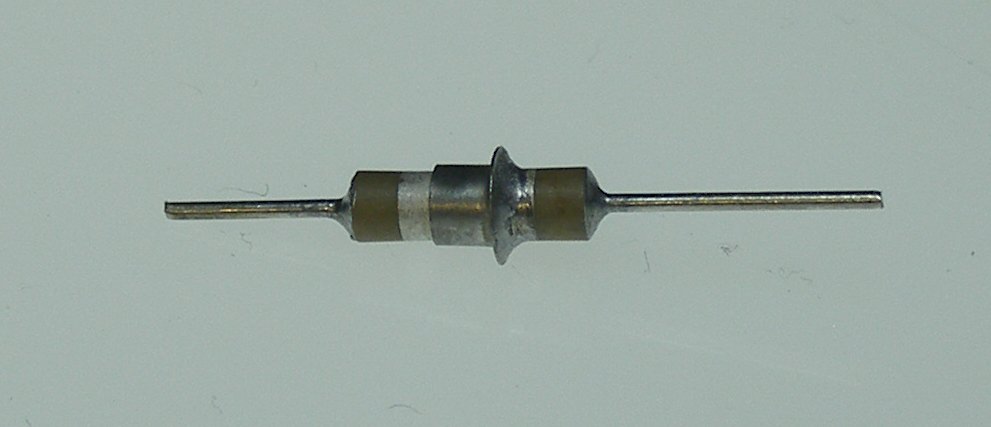

	33822002S Solder in Pi-filter, 2x1,5nF, 250Vdc, 10Amp 12mm long, 3,8mm dia. Ø0,8mm tinned copper wire.
	33822006D We are working as fast as possible so check back soon!

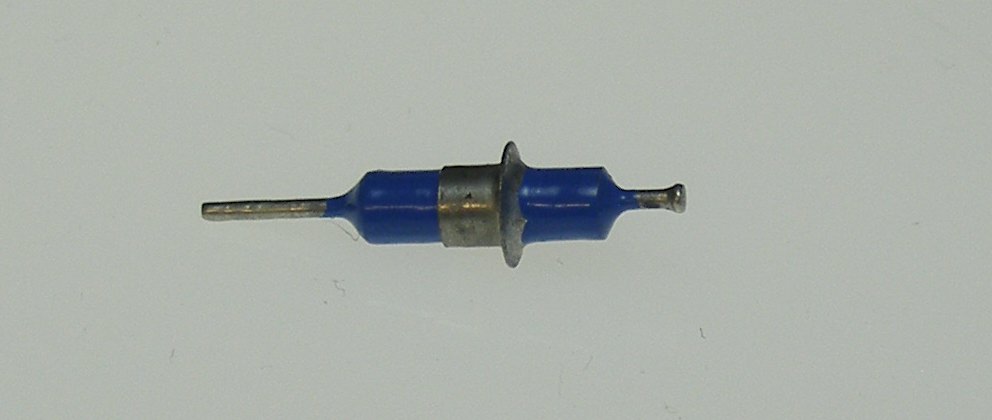

	33822004S Solder in Pi-filter, 2x750pF, 350Vdc, 10Amp 12mm long, 3,4mm dia. Ø0,8mm tinned copper wire with head.

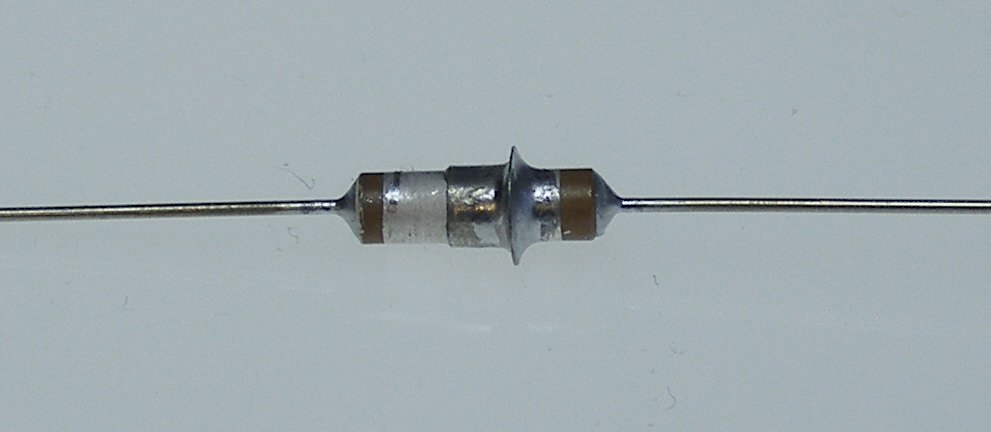

	33812006D Solder in Feed through capacitor, 1nF, 250Vdc, 5Amp 12mm long, 4,0mm dia. Ø0,6mm tinned copper wire.
	33812007D Solder in Feed through capacitor, 1nF, 250Vdc, 5Amp 12mm long, 4,0mm dia. Ø0,6mm tinned copper wire.
	33822003D Solder in Pi-filter, 2x1,5nF, 250Vdc, 10Amp 12mm long, 4,0mm dia.

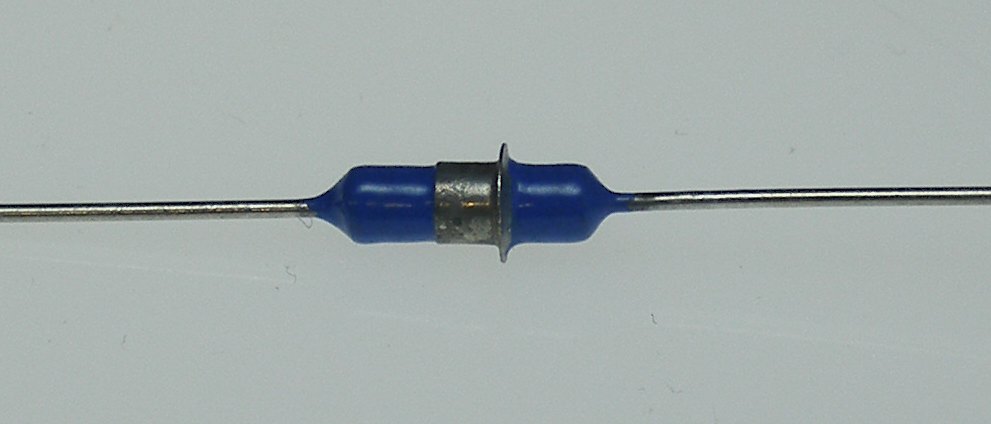

	33822001D We are working as fast as possible so check back soon!

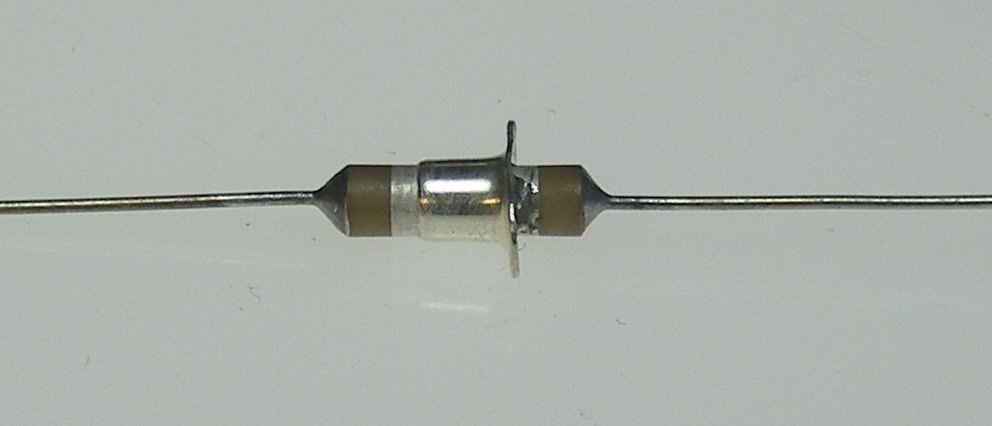

	31222005S Solder in Pi-filter, 2x15pF, 250Vdc, 5Amp 12mm long, 4,0mm dia. Ø0,6mm tinned copper wire.
	31212004S Solder in Feed through capacitor, 120pF, 250Vdc, 5Amp 12mm long, 4,0mm dia. Ø0,6mm tinned copper wire.
	33822002D Solder in Pi-filter, 2x1,5nF, 250Vdc, 5Amp 12mm long, 4,0mm dia. Ø0,6mm tinned copper wire.
	33822003S Solder in Pi-filter, 2x1,5nF, 250Vdc, 5Amp 12mm long, 4,0mm dia. Ø0,6mm tinned copper wire

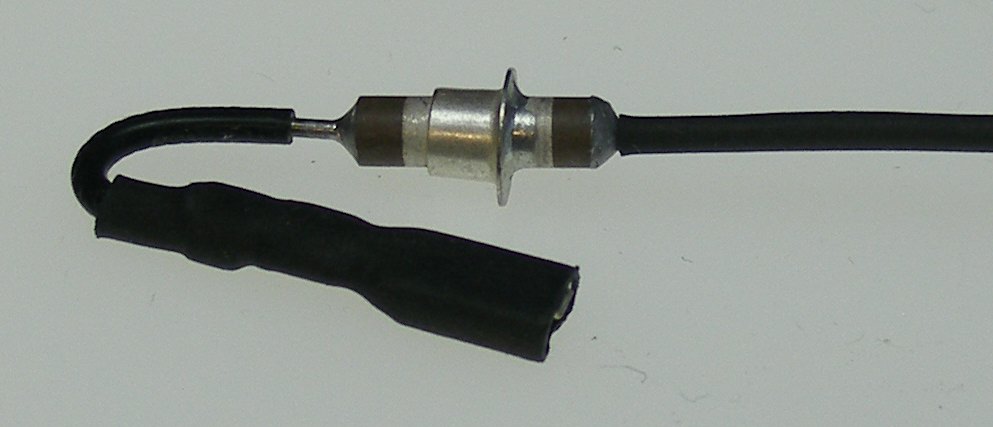

	33812002D Solder in Feed through capacitor, 1,5nF, 250Vdc, 5Amp 12mm long, 5,7mm dia. Ø0,6mm tinned copper wire with 2,8x0,8 receptable.

Pressfit filters

	32813100D/102D/104D/106D/108D Presfit Feed through capacitor 10pF up to 680pF, 200Vdc, 10Amp, 600Vdc test. 3,1mm long, for mounting in a 3,46mm hole.
	32813110D/112D/114D/116D/118D Presfit Feed through capacitor 10pF up to 680pF, 200Vdc, 10Amp, 600Vdc test. 3,1mm long, for mounting in a 4,46mm hole.
	33824104D1/06D/108D Presfit Pi-filter 2x750pF up to 2x6000pF, 100Vdc, 10Amp, 250Vdc test. 10,1mm long, for mounting in a 3,46mm hole.
	33824110D/112D/114D/116D/118D Presfit Pi-filter 2x50pF up to 2x2500pF, 100Vdc, 10Amp, 250Vdc test. 10,1mm long, for mounting in a 4,46mm hole.
	Custom design. Ferroperm EMC makes a varity of custom designed presfit filters and feed throughs. Some of these can be seen in the picture below.

Open bushing filters

M3,5x0,35
	33823012D Open bushing mount Pi-filter, 2x1nF, 250Vdc, 5Amp 7mm long, M3,5x0,5mm thread. Ø0,63mm Au plated connector pin.
	33823010D Open bushing mount feed through capacitor, 1nF, 250Vdc, 5Amp 7mm long, M3,5x0,5mm thread. Ø0,6mm tinned copper wire.
	33823003D Open bushing mount Pi-filter, 2x1nF, 250Vdc, 5Amp 7mm long, M3,5x0,5mm thread. Ø0,6mm tinned copper wire.
M5x0,5
	33813004D Open bushing mount feed through capacitor, 1nF, 220Vdc, 11mm long, M5x0,5mm thread. with internal rivet..
	31213003D Open bushing mount feed through capacitor, 50pF, 250Vdc, 5Amp, 12mm long, M5x0,5mm thread. Ø0,6mm tinned copper wire.
	31213001D Open bushing feed mount through capacitor, 100pF, 250Vdc, 5Amp, 12mm long, M5x0,5mm thread. Ø0,6mm tinned copper wire.
	33823002D Open bushing mount Pi-filter, 2x1,5nF, 250Vdc, 5Amp, 12mm long, M5x0,5mm thread. Ø0,6mm tinned copper wire.
	33823011D Open bushing mount Pi-filter, 2x1,5nF, 250Vdc, 10Amp, 12mm long, M5x0,5mm thread. Ø0,8mm tinned copper wire with eyelets.
M6x0,5
	32823001D Open bushing mount Pi-filter, 2x200pF, 350Vdc, 10Amp, 1500Vdc test for EX application. 12mm long, M6x0,5mm thread. Ø0,8mm tinned copper wire.
	33824001S Open bushing mount Pi-filter, 2x450pF, 350Vdc, 10Amp, 1500Vdc test for EX application. 12mm long, M6x0,5mm thread. Ø0,8mm tinned copper wire.
	33823001D Open bushing mount Pi-filter, 2x800pF, 350Vdc, 10Amp, 1500Vdc test for EX application. 12mm long, M6x0,5mm thread. Ø0,8mm tinned copper wire.
	33823001S Open bushing mount Pi-filter, 2x2,5nF, 500Vdc, 10Amp, 2000Vac test for EX application. 12mm long, M6x0,5mm thread. Ø0,8mm tinned copper wire.
2BA
	32813002S Open bushing mount Feed through capacitor, 1,0nF, 500Vdc, 10Amp. 10mm long, 2BA thread. Ø0,8mm tinned copper wire.

Sealed bushing filters
Metric sizes

M2,5x0,45	.

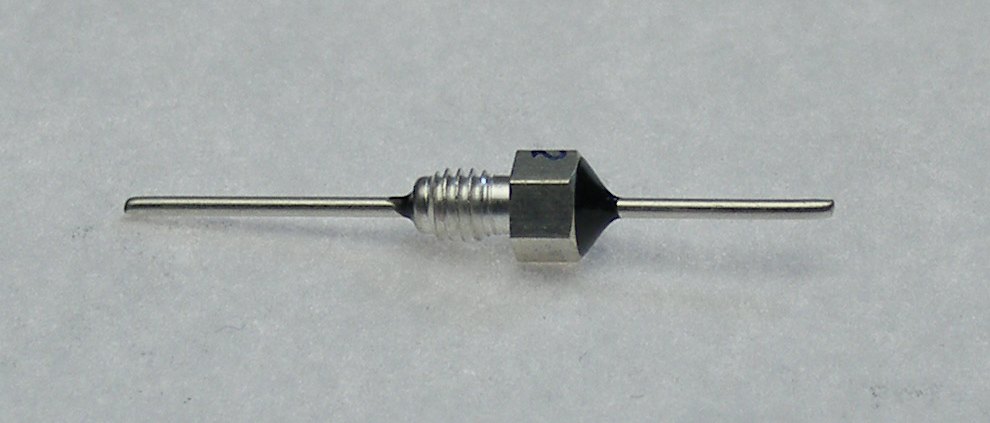

	33814030D/31D/32D/33D/34D/35D/36D/37D Sealed bushing mount Feed through capacitor, 100pF to 20nF, 100Vdc, 10Amp. 6,5mm long, M2,5x0,45mm thread. Ø0,8mm wire.
M3,0x0,5

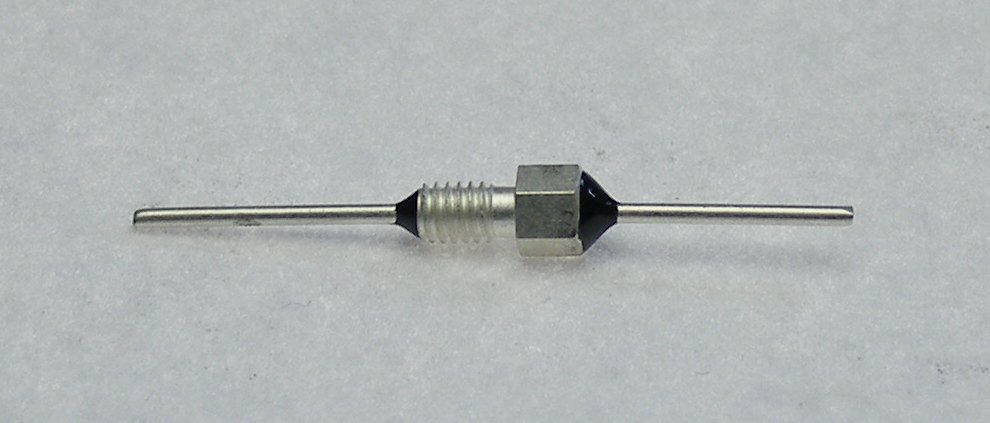

	33814040D/41D/42D/43D/44D/45D/46D/47D Sealed bushing mount Feed through capacitor, 100pF to 20nF, 100Vdc, 10Amp. 6,5 or 8,0mm long, M3,0x0,5mm. Ø0,8mm wire.
M3,5x0,6

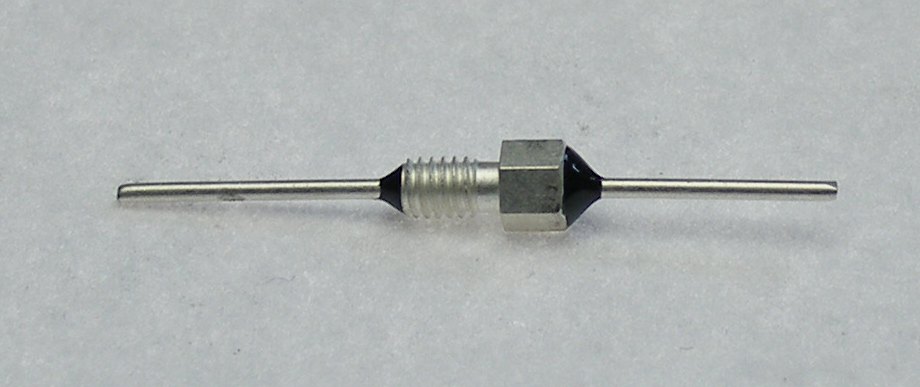

	33814050D/51D/52D/53D/54D/55D/56D/57D/58D Sealed bushing mount Feed through capacitor, 100pF to 50nF, 100Vdc, 10Amp. 8,0mm long, M3,5x0,6mm thread. Ø0,8mm wire.
M4,0x0,7
	33814060D/61D/62D/63D/64D/65D/66D67D/68D Sealed bushing mount Feed through capacitor, 100pF to 50nF, 100Vdc, 10Amp. 8,0mm long, M4,0x0,7mm thread. Ø0,8mm wire.
	33824160D/161D/162D/163D/164D/165D Sealed bushing mount Pi-filter, 2x60pF to 2x6000pF, 100Vdc, 10Amp. 8,0mm long, M4,0x0,7mm thread. Ø0,8mm wire.
M5,0x0,5

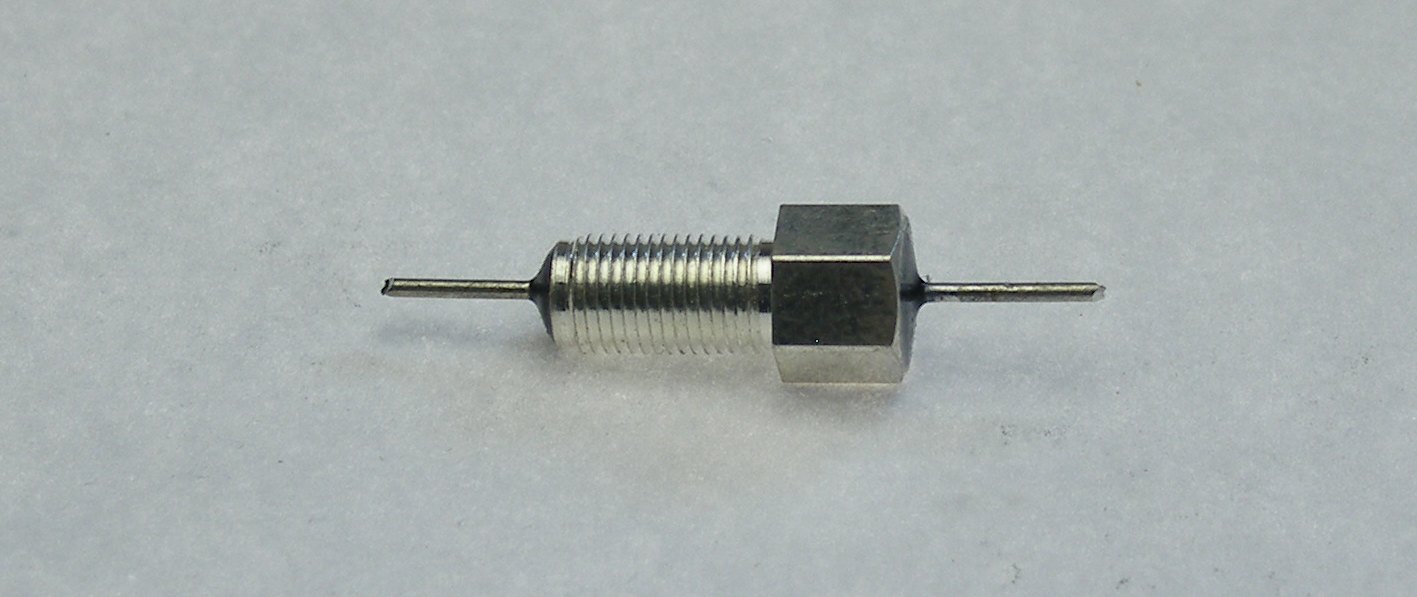

	33814070D/71D/72D/73D/74D/75D/76D/77D/78D Sealed bushing mount Feed through capacitor, 100pF to 50nF, 100Vdc, 10Amp. 12,0mm long, M5,0x0,8mm thread. Ø0,8mm wire.
	33824170D/171D/172D/173D/174D/175D Sealed bushing mount Pi-filter, 2x60pF to 2x6000pF, 200Vdc, 10Amp. 12,0mm long, M5,0x0,8mm thread. Ø0,8mm wire.

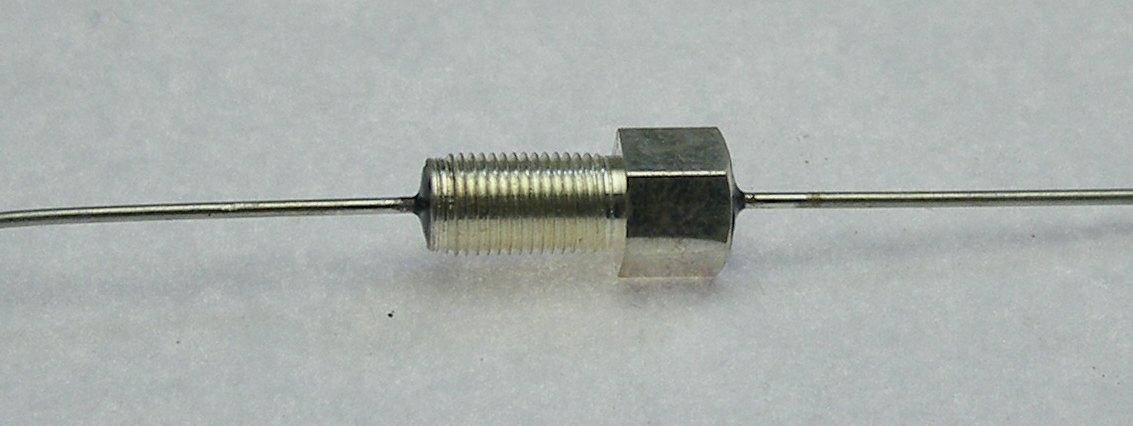

	33814012D Sealed bushing mount Feed through capacitor, 1,0nF, 500Vdc, 10Amp. 14,0mm long, M5x0,5 thread. Ø0,8mm tinned copper wire.
	33814015D Sealed bushing mount Feed through capacitor, 2,2nF, 500Vdc, 10Amp. 14,0mm long, M5x0,5 thread. Ø0,8mm tinned copper wire.
	33824011D Sealed bushing mount Pi-filter, 2x2,75nF 100Vdc, 10Amp. 10,1mm long, M5x0,8 thread. Ø0,8mm headded tinned copper wire.
	33814006D Sealed bushing mount Feed through capacitor, 1,0nF, 250Vdc, 10Amp. 12,0mm long, M5x0,8 thread. Ø0,8mm tinned copper wire.
	33814022D Sealed bushing mount Feed through cap. 100pF, 500Vdc, 10Amp.1500Vdc test for EX application. 15,5mm long, M5x0,75 thread. Ø1,0mm tinned copper wire.

M6,0x0,75

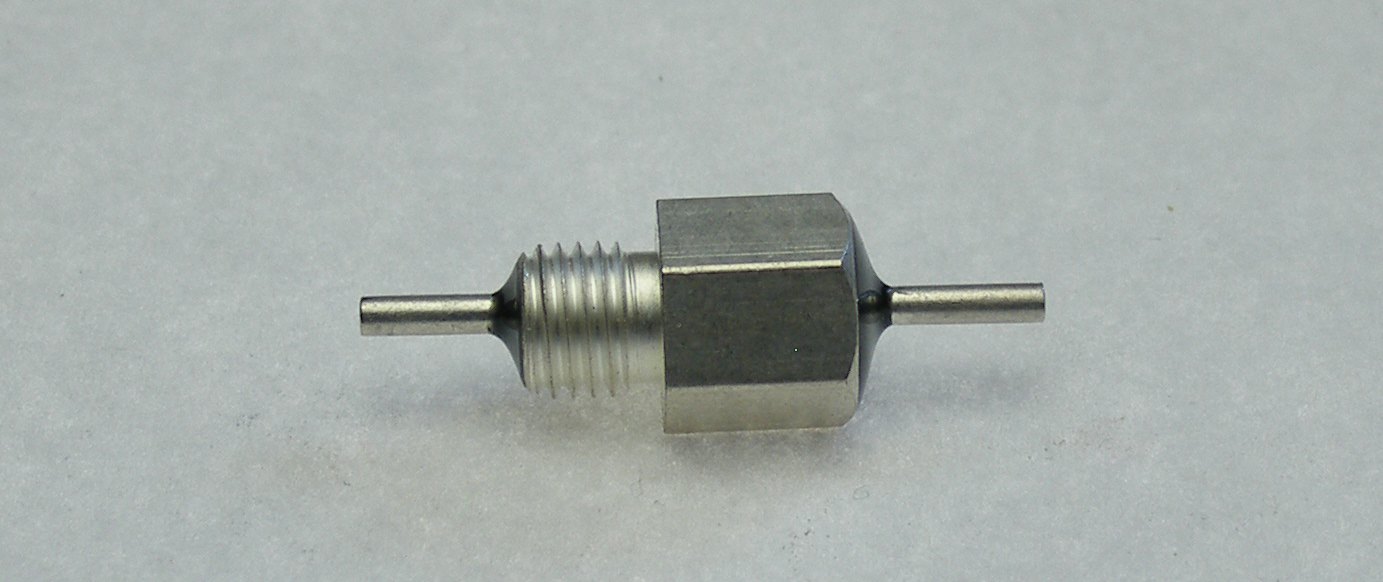

	33814080D/81D/82D/83D/84D/85D/86D87D/88D/89D Sealed bushing mount Feed through capacitor, 100pF to 100nF, 100Vdc, 15Amp. 12,5mm long, M6,0x0,75mm thread. Ø1,0mm wire.
	33814180D/181D/182D/183D/184D/185D Sealed bushing mount Pi-filter, 2x60pF to 2x6000pF, 200Vdc, 15Amp. 12,5mm long, M6,0x0,75mm thread. Ø1,0mm wire.
	33824010D Sealed bushing mount Pi-filter, 2x750pF, 300Vdc, 10Amp. 11,8mm long, M6x0,75 thread. Ø0,8mm tinned copper wire.
	33824011S Sealed bushing mount Pi-filter, 2x1,5nF 100Vdc, 10Amp. 10,1mm long, M6x0,8 thread. Ø0,8mm headded tinned copper wire.

M8,0x1,25

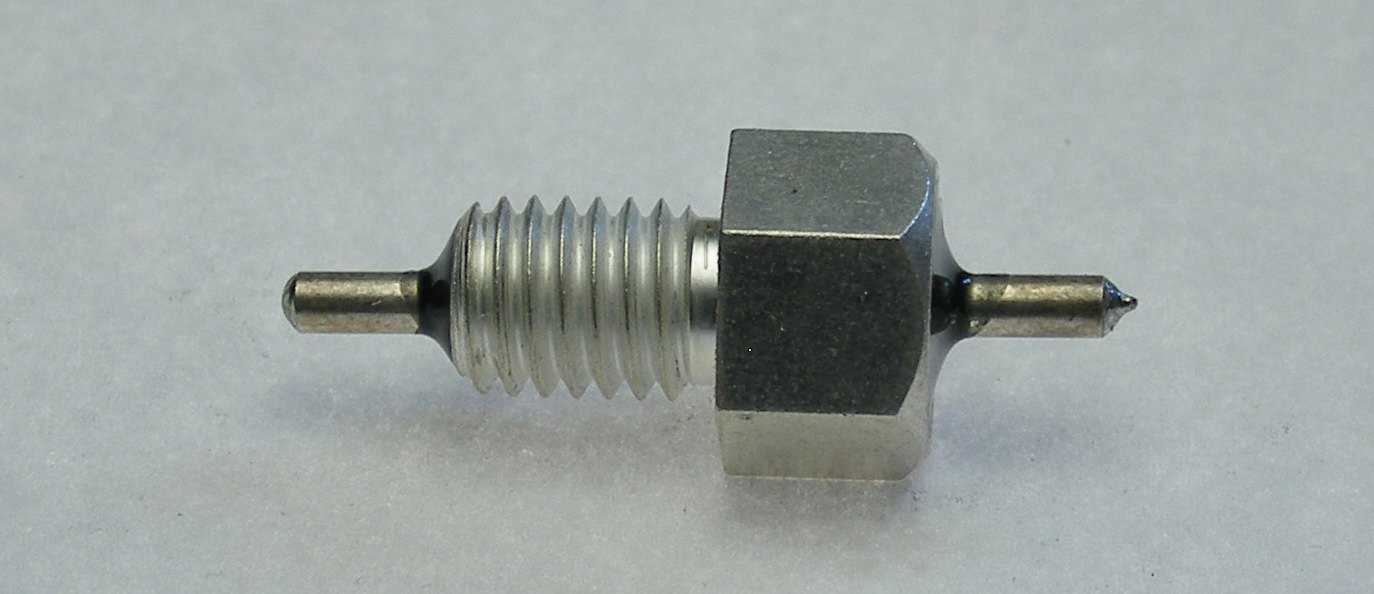

	33814090D/91D/92D/93D/94D/95D/96D97D/98D/99D Sealed bushing mount Feed through capacitor, 100pF to 100nF, 100Vdc, 25Amp. 18,0mm long, M8,0x1,25mm thread. Ø1,4mm wire.
	33814190D/191D/192D/193D/194D/195D Sealed bushing mount Pi-filter, 2x60pF to 2x6000pF, 500Vdc, 25Amp. 18,0mm long, M8,0x1,25mm thread. Ø1,4mm wire.
M8,0x0,75
	33824075D Sealed bushing mount Pi-filter, 2x500pF 500Vdc, 25Amp. 17,5mm long, M8x0,75 thread. Ø1,4mm tinned copper wire.
	33824012D Sealed bushing mount Pi-filter, 2x2,0npF 500Vdc, 25Amp. 17,5mm long, M8x0,75 thread. Ø1,4mm tinned copper wire.
	33824042D Sealed bushing mount Pi-filter, 2x2,0nF 1000Vdc, 25Amp. 17,5mm long, M8x0,75 thread. Ø1,4mm tinned copper wire.
	33824071D Sealed bushing mount Pi-filter, 2x2,0npF 500Vdc, 25Amp. 17,5mm long, M8x0,75 thread. Ø1,4mm tinned copper wire with eyelets.
	33824069D Sealed bushing mount Pi-filter, 2x3,0nF 500Vdc, 25Amp. 17,5mm long, M8x0,75 thread. Ø1,4mm tinned copper wire with terminals..
	33824061D Sealed bushing mount Pi-filter, 2x2,0nF 500Vdc, 25Amp. 17,5mm long, M8x0,75 thread. Ø1,4mm bend tinned copper wire.

Sealed bushing filters
Inch sizes

4-40UNC-2A
	33814023D Sealed bushing mount Feed through capacitor, 5pF, 200Vdc, 10Amp. 5,5mm long, 4-40UNC-2A thread. Ø0,8mm tinned copper wire.
	33814011D Sealed bushing mount Feed through capacitor, 1,0nF, 200Vdc, 10Amp. 5,5mm long, 4-40UNC-2A thread. Ø0,8mm tinned copper wire.
	33824030D Sealed bushing mount Pi-filter 2x750p, 200Vdc, 3Amp. 8,5mm long, 4-40UNC-2A thread. Ø0,5mm silver wire.
	33814013D Sealed bushing mount Feed through capacitor, 22,0nF, 100Vdc, 5Amp. 8,5mm long, 4-40UNC-2A thread. Ø0,5mm silver wire.

6-32UNC-2A
	33814021D Sealed bushing mount Feed through capacitor, 150pF, 100Vdc, 10Amp. 8,9mm long, 6-32UNC-2A thread. Ø0,8mm tinned copper wire.
	33814019D Sealed bushing mount Feed through capacitor, 1,0nF, 100Vdc, 10Amp. 8,9mm long, 6-32UNC-2A thread. Ø0,8mm tinned copper wire.
	33814007D Sealed bushing mount Feed through capacitor, 50nF, 100Vdc, 10Amp. 8,9mm long, 6-32UNC-2A thread. Ø0,8mm tinned copper wire.
	33814020D Sealed bushing mount Feed through capacitor, 100nF, 50Vdc, 10Amp. 8,9mm long, 6-32UNC-2A thread. Ø0,8mm tinned copper wire.

8-32UNC-2A
	33814014D Sealed bushing mount Feed through capacitor, 1,0nF, 100Vdc, 20Amp. 9,2mm long, 8-32UNC-2A thread. Ø1,4mm tinned copper wire.
	33814017D Sealed bushing mount Feed through capacitor, 50nF, 100Vdc, 10Amp. 9,2mm long, 8-32UNC-2A thread. Ø0,8mm headded tinned copper wire.
	33824003S Sealed bushing mount Pi-filter, 2x6nF, 100Vdc, 10Amp. 9,2mm long, 8-32UNC-2A thread. Ø0,8mm tinned copper wire.
	33824004S Sealed bushing mount Pi-filter, 2x750pF, 100Vdc, 5Amp. 5,2mm long, 8-32UNC-2A thread. Ø0,8mm tinned copper wire with eyelet.
	33824005S Sealed bushing mount Pi-filter, 2x1nF, 100Vdc, 5Amp. 9,2mm long, 8-32UNC-2A thread. Ø0,6mm tinned copper wire with eyelet.
	33824006S Sealed bushing mount Pi-filter, 2x1nF, 100Vdc, 10Amp. 9,2mm long, 8-32UNC-2A thread. Ø0,8mm headded tinned copper wire.
	33824008S Sealed bushing mount Pi-filter, 2x1,5nF, 200Vdc, 10Amp. 9,2mm long, 8-32UNC-2A thread. Ø0,8mm tinned copper wire.
	33824014D Sealed bushing mount Pi-filter, 2x1,5nF, 200Vdc, 10Amp. 9,2mm long, 8-32UNC-2A thread. Ø0,8mm tinned copper wire.
	33824026D Sealed bushing mount Pi-filter, 2x1,5nF, 100Vdc, 10Amp. 9,2mm long, 8-32UNC-2A thread. Ø0,8mm headded tinned copper wire.
	33824027D Sealed bushing mount Pi-filter, 2x6nF, 100Vdc, 10Amp. 9,2mm long, 8-32UNC-2A thread. Ø0,8mm tinned copper wire.
	33824029D Sealed bushing mount Pi-filter, 2x2,75nF, 200Vdc, 10Amp. 9,2mm long, 8-32UNC-2A thread. Ø0,8mm headded tinned copper wire.
	33824032D Sealed bushing mount Pi-filter, 2x2,75nF, 200Vdc, 10Amp. 9,2mm long, 8-32UNC-2A thread. Ø0,8mm tinned copper wire.
	33824056D Sealed bushing mount Pi-filter, 2x3nF, 200Vdc, 10Amp. 9,2mm long, 8-32UNC-2A thread. Ø0,8mm headded tinned copper wire.
	33824057D Sealed bushing mount Pi-filter, 2x14nF, 100Vdc, 10Amp. 9,2mm long, 8-32UNC-2A thread. Ø0,8mm tinned copper wire.
	33823073D Sealed bushing mount Pi-filter, 2x1,5nF, 100Vdc, 10Amp. 9,2mm long, 8-32UNC-2A thread. Ø0,8mm tinned copper wire with eyelets.
	33823074D Sealed bushing mount Pi-filter, 2x3nF, 100Vdc, 10Amp. 9,2mm long, 8-32UNC-2A thread. Ø0,8mm tinned copper wire with eyelets.
	33823076D Sealed bushing mount Pi-filter, 2x6nF, 100Vdc, 10Amp. 9,2mm long, 8-32UNC-2A thread. Ø0,8mm tinned copper wire with eyelets.
	33823078D Sealed bushing mount Pi-filter, 2x3nF, 250Vdc, 10Amp. 9,2mm long, 8-32UNC-2A thread. Ø0,8mm tinned copper wire with eyelets.

12-28UNF-2A
	33814024D Sealed bushing mount Feed through capacitor, 1,0nF, 500Vdc, 25Amp. 11,9mm long, 12-28UNF-2A thread. Ø1,3mm tinned copper wire.

12-32UNEF-2A
	33814009D Sealed bushing mount Feed through capacitor, 10nF, 500Vdc, 15Amp. 11,9mm long, 12-32UNEF-2A thread. Ø1,0mm tinned copper wire.
	33824016D Sealed bushing mount Pi-filter, 2x1,5nF 500Vdc, 10Amp. 11,9mm long, 12-32UNEF-2A thread. Ø1,0mm tinned copper wire.
	33824060D Sealed bushing mount Pi-filter, 2x1,5nF 500Vdc, 15Amp. 11,9mm long, 12-32UNEF-2A thread. Ø1,0mm tinned copper wire.
	33824001D Sealed bushing mount Pi-filter, 2x2,0nF 250Vdc, 10Amp,1500Vdc test for EX application. 11,9mm long, 12-32UNEF-2A thread. Ø0,8mm tinned copper wire.
	33824039D Sealed bushing mount Pi-filter, 2x2,0nF 250Vdc, 10Amp, 1500Vdc test for EX application. 11,9mm long, 12-32UNEF-2A thread. Ø0,8mm tinned copper wire.
mangler	33824062D Sealed bushing mount Pi-filter, 2x750pF 250Vdc, 10Amp. 11,9mm long, 12-32UNEF-2A thread. Ø0,8mm headded tinned copper wire.

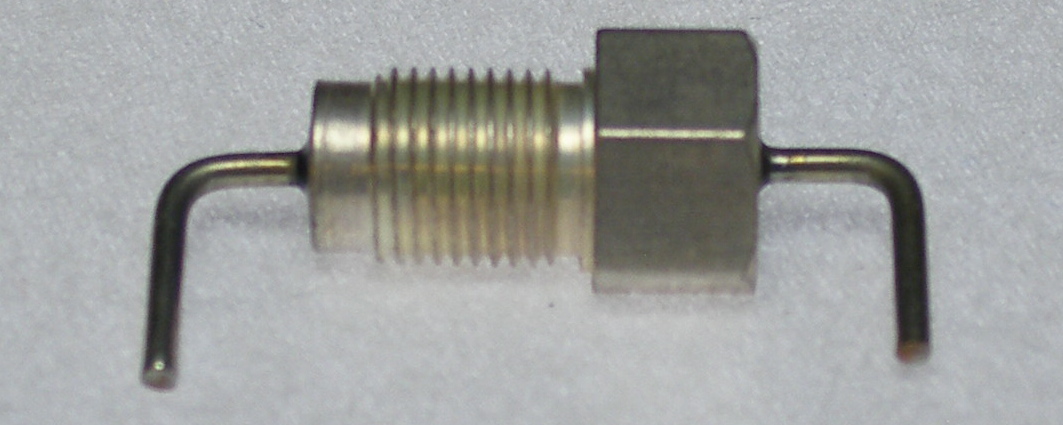

	33824065D Sealed bushing mount Pi-filter, 2x2,0nF 500Vdc, 15Amp. 11,9mm long, 12-32UNEF-2A thread. Ø1,0mm tinned copper wire.
	31214001D Sealed bushing mount Feed through capacitor, 120pF, 250Vdc, 10Amp. 12,0mm long, 12-32UNEF-2A thread. Ø0,8mm tinned copper wire.
	33814003D Sealed bushing mount Feed through capacitor, 2x800pF, 250Vdc, 15Amp. 10,0mm long, 12-32UNEF-2A thread. Ø1,0mm tinned copper wire.
	32824005D Sealed bushing mount Pi-filter, 2x1,5nF 250Vdc, 15Amp. 12,0mm long, 12-32UNEF-2A thread. Ø1,0mm tinned copper wire.
	33824002D Sealed bushing mount Pi-filter, 2x1,5nF 250Vdc, 10Amp. 12,0mm long, 12-32UNEF-2A thread. Ø0,8mm tinned copper wire.
	33824002S Sealed bushing mount Pi-filter, 2x1,5nF 250Vdc, 10Amp. 12,0mm long, 12-32UNEF-2A thread. Ø0,8mm tinned copper wire.
	33824015D Sealed bushing mount Pi-filter, 2x2,5nF 500Vdc, 10Amp. 12,0mm long, 12-32UNEF-2A thread. Ø0,8mm tinned copper wire.
	33824043D/044D/045D/046D/047D/048D Sealed bushing mount Pi-filter, 2x22nF 200Vdc, 0,1 to 5,0mp. 12,0mm long, 12-32UNEF-2A thread. Ø0,8mm tinned copper wire.
	32824003S Sealed bushing mount Pi-filter, 2x800pF 250Vdc, 10Amp. 12,0mm long, 12-32UNEF-2A thread. Ø0,8mm headded tinned copper wire.
	33824018D Sealed bushing mount Pi-filter, 2x2,5nF 250Vdc, 10Amp. 12,0mm long, 12-32UNEF-2A thread. Ø0,8mm headded tinned copper wire.
	33824020D Sealed bushing mount Pi-filter, 2x2,5nF 250Vdc, 10Amp. 12,0mm long, 12-32UNEF-2A thread. Ø0,8mm headded tinned copper wire.
	33824034D Sealed bushing mount Pi-filter, 2x2,5nF 250Vdc, 10Amp. 12,0mm long, 12-32UNEF-2A thread. Ø0,8mm headded tinned copper wire.
	33824035D Sealed bushing mount Pi-filter, 2x2,5nF 250Vdc, 10Amp. 12,0mm long, 12-32UNEF-2A thread. Ø0,8mm headded tinned copper wire.
	33824036D Sealed bushing mount Pi-filter, 2x2,75npF 250Vdc, 10Amp. 12,0mm long, 12-32UNEF-2A thread. Ø0,8mm headded tinned copper wire.

5/16-24UNC-2A

	33824024D Sealed bushing mount Pi-filter, 2x2,0nF, 500Vdc, 25Amp. 17,5mm long, 5/16-24UNF thread. Ø1,4mm tinned copper wire.
	33814016D Sealed bushing mount Feed through capacitor, 50nF, 100Vdc, 25Amp. 17,5mm long, 5/16-24UNF thread. Ø1,4mm tinned copper wire with eyelets.
	33824025D Sealed bushing mount Pi-filter, 2x1,5nF, 500Vdc, 25Amp. 17,5mm long, 5/16-24UNF thread. Ø1,4mm tinned copper wire with eyelets.
	33824013D Sealed bushing mount Pi-filter, 2x1,5nF, 500Vdc, 25Amp. 17,5mm long, 5/16-24UNF thread. Ø1,4mm tinned copper wire with eyelets.
	33824058D Sealed bushing mount Pi-filter, 2x6,0nF, 500Vdc, 25Amp. 17,5mm long, 5/16-24UNF thread. Ø1,4mm tinned copper wire with hooks.

5/16-32UNEF-2A

1/4-28UNF-2A
	3824081D Sealed bushing mount L-filter, 1200nF, 100Vdc, 30Amp. 9,3mm long, 1/4-28UNF thread. Ø2,0mm tinned copper wire.
	3824049D Sealed bushing mount L-filter, 1400nF, 100Vdc, 15Amp. 10,1mm long, 1/4-28UNF thread. Ø1,0mm tinned copper wire.
	3824063D Sealed bushing mount Pi-filter, 2x500nF, 100Vdc, 2Amp. 24,4mm long, 1/4-28UNF thread. Ø1,0mm tinned copper wire.
	3824017D Sealed bushing mount L-filter, 1400nF, 100Vdc, 25Amp. 10,1mm long, 1/4-28UNF thread. Ø1,4mm tinned copper wire with eyelets.
	3824083D Sealed bushing mount Pi-filter, 2x600nF, 100Vdc, 25Amp. 20,0mm long, 1/4-28UNF thread. Ø1,4mm tinned copper wire with eyelets.
	3824070D Sealed bushing mount Pi-filter, 2x1200nF, 100Vdc, 25Amp. 24,4mm long, 1/4-28UNF thread. Ø1,4mm tinned copper wire with eyelets.
	3824051D Sealed bushing mount L-filter, 1200nF, 100Vdc, 30Amp. 12,4mm long, 1/4-28UNF thread. Ø2,0mm tinned copper wire with terminal.

Hermetically Sealed bushing filters

1/4-28UNF-2A
